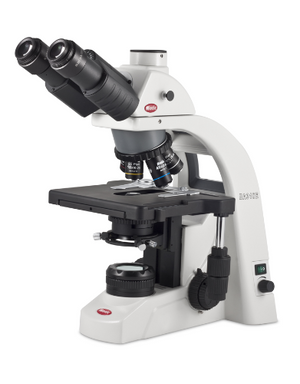

Committed to the concept of continuously improving its models, Motic’s Elite series microscopes represent Motic’s most advanced models. Featuring Motic’s Infinity Optical System and the improved CCIS EC Plan objective lenses, the BA310 Elite provides superior image clarity and contrast. The elite models introduce a new rackless stage concept without a prominent gear rack which allows even more convenient use of the X/Y movement. The elite models also allow easy interchangeability of its 6V/30W Halogen bulb with LED modules.
BA310 MICROSCOPE SERIES
The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples. Additional contrast methods like Phase contrast, polarization, and darkfield and discussion/teaching devices ensure that the BA310 offers long term functionality to all user levels. accessories.
Main features:
Specifications:
| Model | BA310E Binocular | BA310E Trinocular |
| Observation tube | Binocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Darkfield | Optional slider/turret | Optional slider/turret |
| Diaphragm | Iris diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment |
| Filter holder | On top of the illuminator with fixing cap | On top of the illuminator with fixing cap |
| Fine focus precision | 2µm | 2µm |
| Fluorescence | Optional LED | Optional LED |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 20mm | 20mm |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W | Quartz halogen 6V/30W or LED 3W |
| Inclination | 30° inclined, 360° rotating | 30° inclined, 360° rotating |
| Interpupillary distance | 48-75mm | 48-75mm |
| Nosepiece | Reversed quintuple | Reversed quintuple |
| Objective classification | CCIS® EC Plan Achromatic, DIN | CCIS® EC Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Phase contrast | Optional slider/turret | Optional slider/turret |
| Polarization | Optional add-on | Optional add-on |
| Stage | Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder | Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder |
| Stage size | 180x170mm | 180x170mm |
| Stand type | Upright | Upright |
| Standard contrast technique | Brightfield | Brightfield |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control | Koehler Quartz halogen 6V/30W with intensity control |
| Travel range X&Y | 80x55mm | 80x55mm |
| Upper limit stop | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable |
| Transformer | Internal | Internal |
| Power supply | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw |
| Dimensions LxWxH | 400x220x400mm | 400x220x400mm |
| Weight Net | 8.6kg | 8.6kg |
Downloads:
Warranty:
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
Return Policy:
All returns must be authorized by Micro-Optics in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
