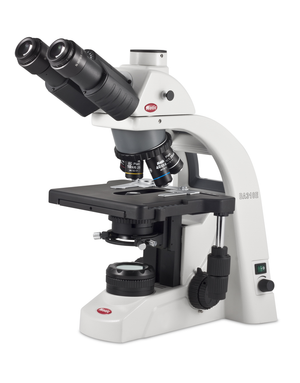

The BA310E LED Phase package contains everything in the BA310E LED along with phase accessories including a turret condenser, phase objectives and phase centering telescope. The turret condenser allows the user to switch between brightfield, darkfield and different phase settings.
BA310 MICROSCOPE SERIES
The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples. Additional contrast methods like Phase contrast, polarization, and darkfield and discussion/teaching devices ensure that the BA310 offers long term functionality to all user levels. accessories.
Main features:
Specifications:
| Model | BA310E Trinocular |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Darkfield | Optional slider/turret |
| Diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
| Filter holder | On top of the illuminator with fixing cap |
| Fine focus precision | 2µm |
| Fluorescence | Optional LED |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 20mm |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W |
| Inclination | 30° inclined, 360° rotating |
| Interpupillary distance | 48-75mm |
| Nosepiece | Reversed quintuple |
| Objective classification | CCIS® EC Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Phase contrast | Optional slider/turret |
| Polarization | Optional add-on |
| Stage | Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder |
| Stage size | 180x170mm |
| Stand type | Upright |
| Standard contrast technique | Brightfield |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control |
| Travel range X&Y | 80x55mm |
| Trinocular light split | 100:0/20:80 or 100:0/0:100 |
| Upper limit stop | Upper limit stop preset but adjustable |
| Transformer | Internal |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw |
| Dimensions LxWxH | 400x220x400mm |
| Weight Net | 8.6kg |
Downloads:
Warranty:
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
