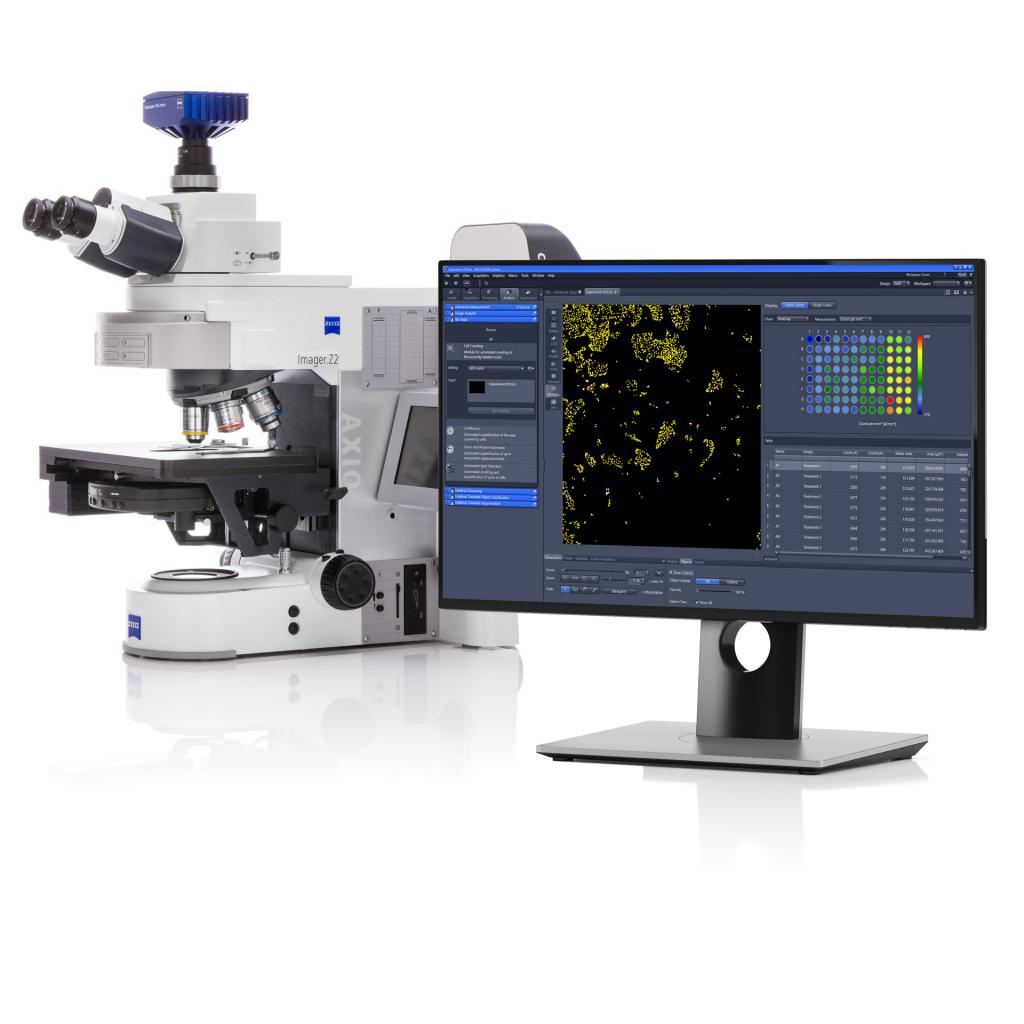

ZEISS Axio Imager scan​
Automated Acquisition and Advanced Data Analyses for High-Throughput Screening Applications​

The preconfigured microscope bundle ZEISS Axio Imager scan is designed to increase the efficiency of your large-scale data collection workflows. Selected hard- and software components create a streamlined process from acquisition to evaluation of relevant data for your research needs.

✓ Multiplexing applications with repeated imaging of large tissue sections

✓ High-throughput imaging of multi-well plates or slides for drug screenings

✓ Large-scale genetic screens​

INQUIRE

Bundle Components​

HARDWARE

Microscope:

  • Axio Imager 2 (upright widefield microscope stand)​
  • Scanning stage 130 × 100​
  • Motorized condenser NA 0.9
  • Apotome 3

Light source / camera:

  • Colibri 7​
  • Filter sets 38, 43, 50, 70, 96​
  • Axiocam 305 color
  • Axiocam 820 mono

Objectives:

  • EC Plan-Neofluar 5× / 0.16​
  • Plan-Apochromat 10× / 0.45 , 20× / 0.8​
  • LD LCI PApo 40× / 0.95 Corr

Workstation:

  • Z6 Workstation with 128 GB RAM and nVidia Quadro RTX4000 16 GB​

SOFTWARE

Motorized Acquisition​:

  • Acquire images and control motorized components in multi-dimensional experiments.​

Smart Acquisition​:

  • Create flexible and intelligent image acquisitions workflows with the Experiment Designer, Guided Acquisition and Experiment Feedback tools.​

2D Toolkit​:

  • Create flexible automatic measurement programs for the analysis of your 2D images.​

AI Toolkit​:

  • Make use of powerful AI tools. With this package, you can train AI models for various applications.​

Still have questions? contact us.

Get Support

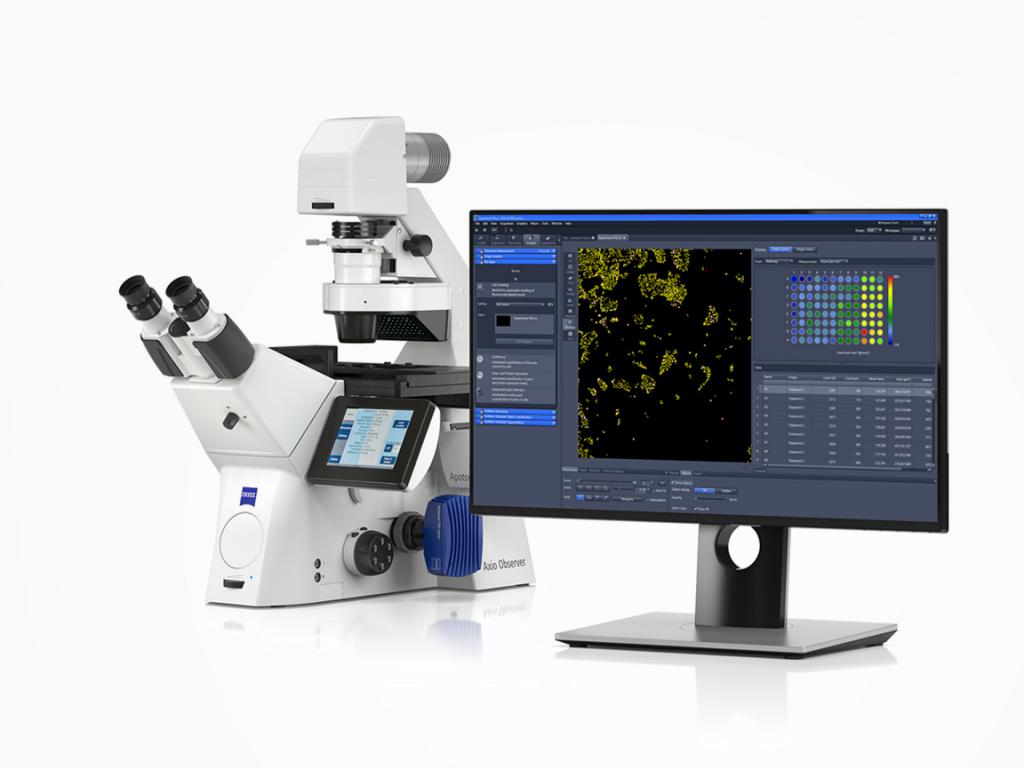

Looking for an inverted microscope configuration?​

This widefield bundle for screening applications can also be configured based on the inverted microscope ZEISS Axio Observer 7.

Axio Observer scan

Downloads

  • ZEISS Microscope Bundle for Screening Applications

    Fast acquisition and evaluation of large areas

    Download
