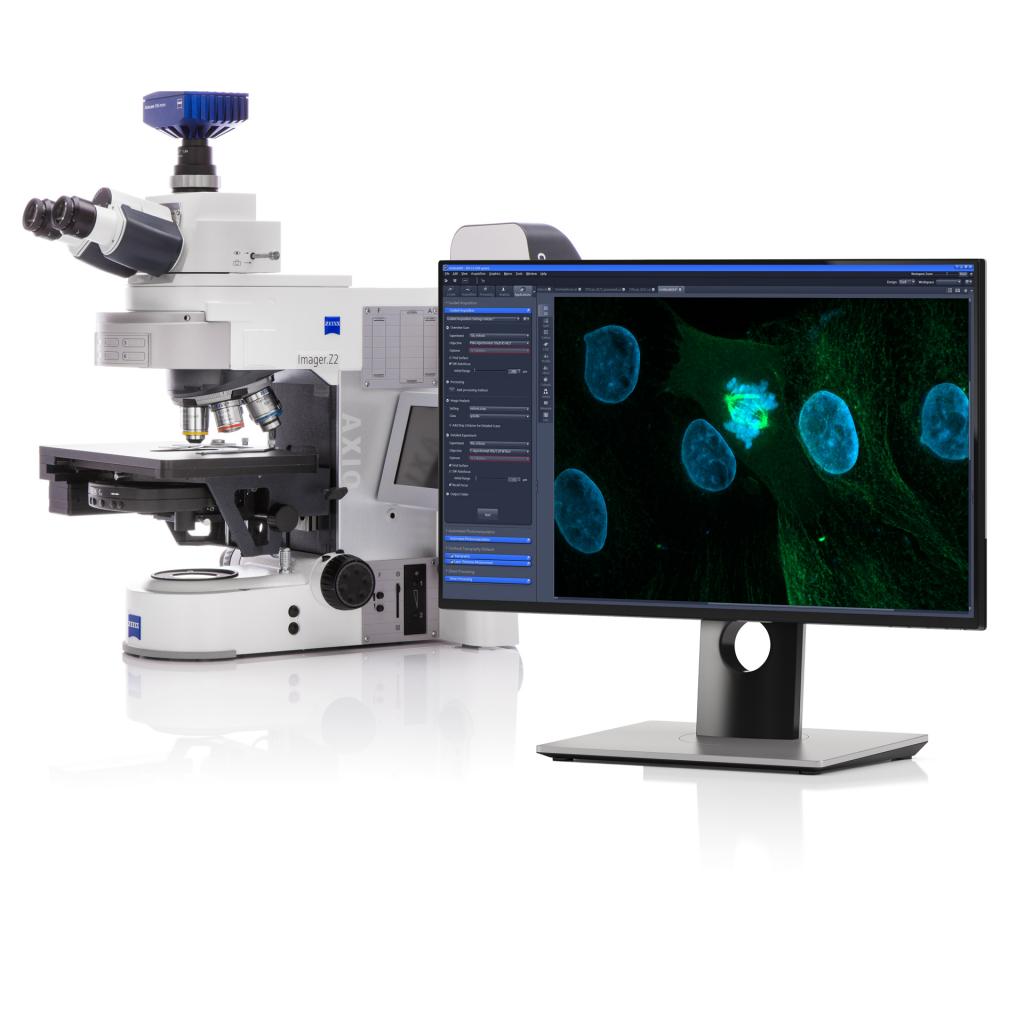

ZEISS Axio Imager section
High-Resolution 3D Visualization & Evaluation​

The preconfigured microscope bundle ZEISS Axio Imager section is designed to provide streamlined workflows for cost-effective 3D imaging from data collection to evaluation. Bring your 3D experiments in cell and developmental biology to the next level.

✓ 3D cell culture models (organoids, spheroids)​

✓Small model organisms (yeast, C. elegans, zebrafish)

✓Cell monolayers

✓Tissue sections

INQUIRE

Bundle Components

HARDWARE

Microscope:

  • Axio Imager 2 (upright widefield microscope stand)​
  • Scanning stage 130 × 100​
  • Motorized condenser NA 0.9
  • Apotome 3

Light source / camera:

  • Colibri 7​
  • Filter sets 38, 43, 50, 64, 70, 96, 115​
  • Axiocam 820 mono

Objectives:

  • EC Plan-Neofluar 5× / 0.16​
  • Plan-Apochromat 10× / 0.45​
  • Plan-Apochromat 20× / 0.8​
  • Plan-Apochromat 63× / 1.4 Oil

Workstation:

  • Z6 Workstation with 128 GB RAM and nVidia Quadro RTX4000 16 GB

SOFTWARE

Motorized Acquisition​:

  • Acquire images and control motorized components in multi-dimensional experiments.

2D Toolkit:

  • Create flexible automatic measurement programs for the analysis of your 2D images.

Still have questions? contact us.

Contact

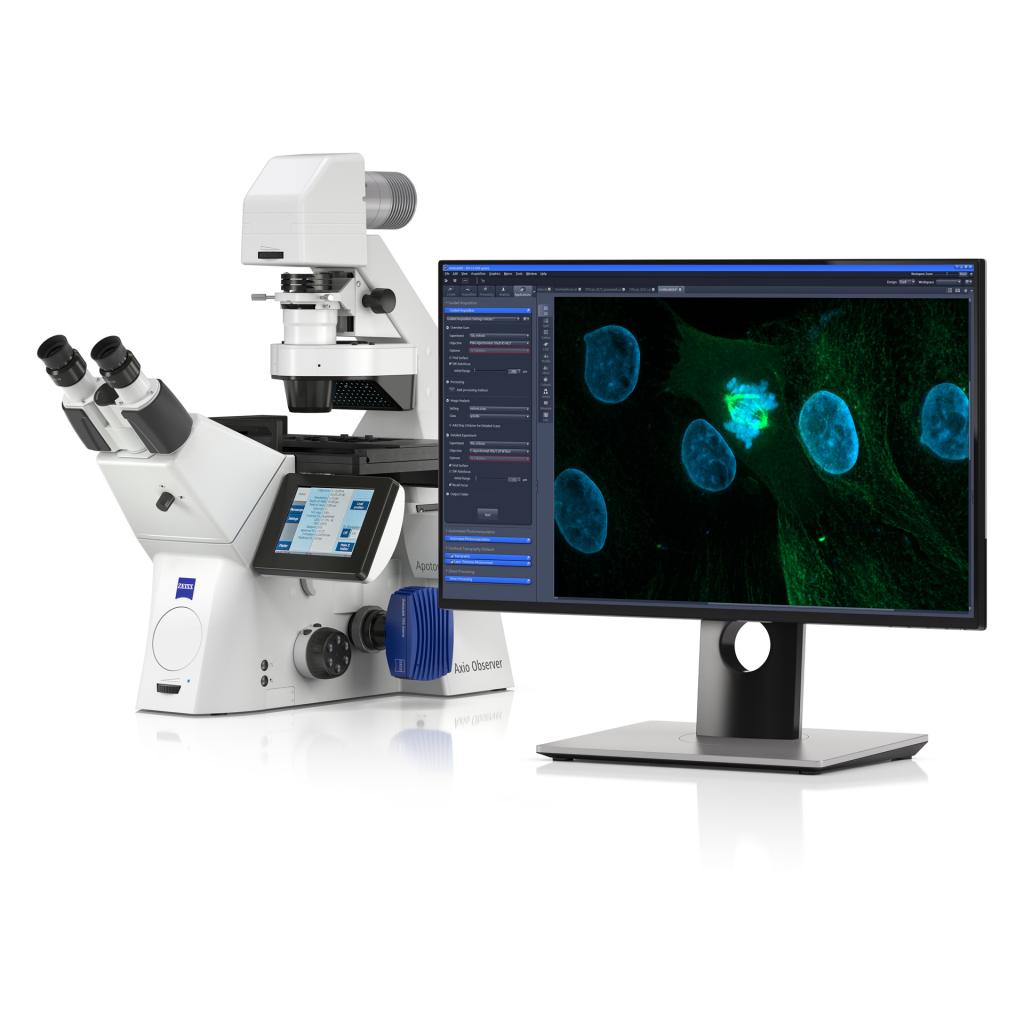

Looking for an inverted microscope configuration?​

This widefield bundle for high-resolution 3D visualization and evaluation can also be configured based on the inverted microscope ZEISS Axio Observer 7.

Axio Observer section

Downloads

  • ZEISS Microscope Bundle for Optical Sectioning

    Creating crisp sections of thick samples with ease
