Your Fluorescence Stereo Zoom Microscope for Large Fields

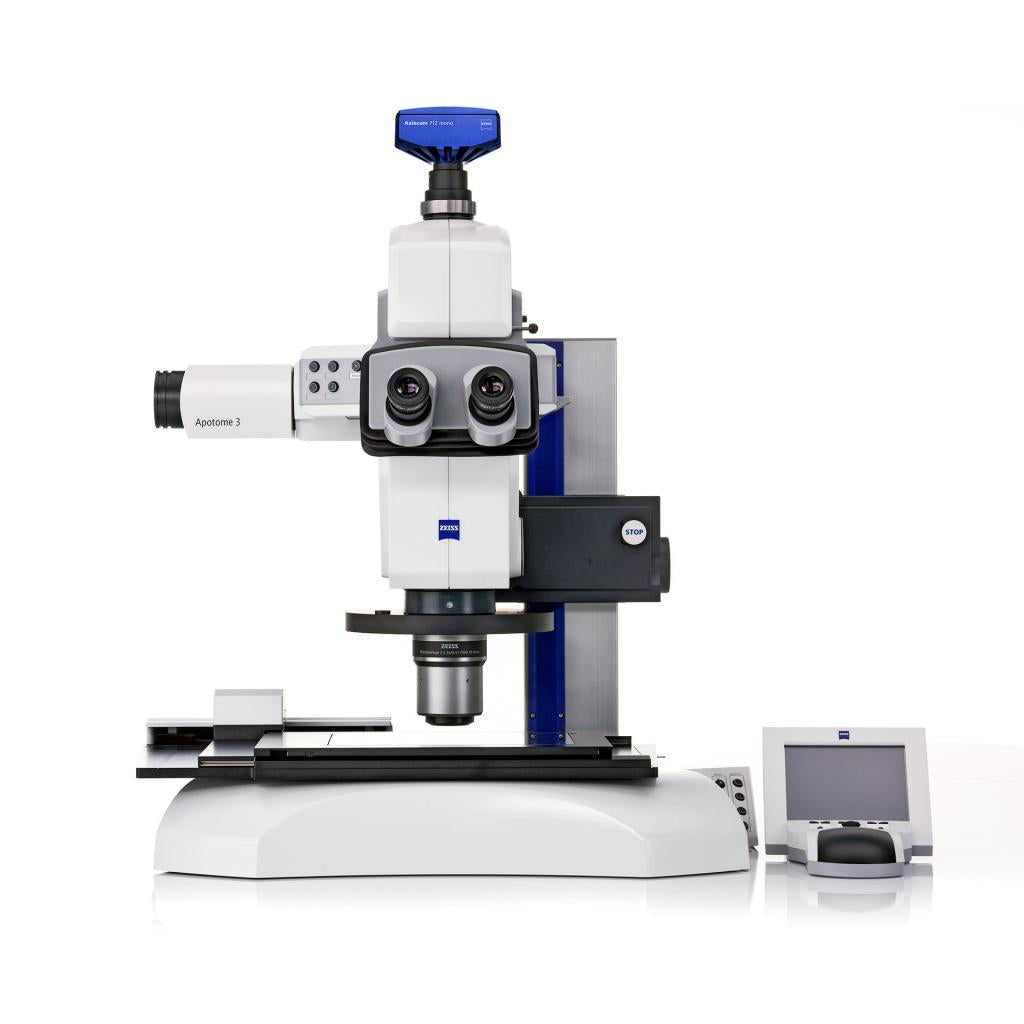

ZEISS Axio Zoom.V16 for Biology

Axio Zoom.V16 combines a 16x zoom with a high numerical aperture of NA 0.25, moving to the forefront of all known stereo and zoom microscopes. It achieves a very high aperture in the medium zoom range already. You get superior brightness in large object fields and view complete model organisms in fluorescence contrast.

✓ Bright fluorescence in large fields

✓ Zoom modes optimized for your application

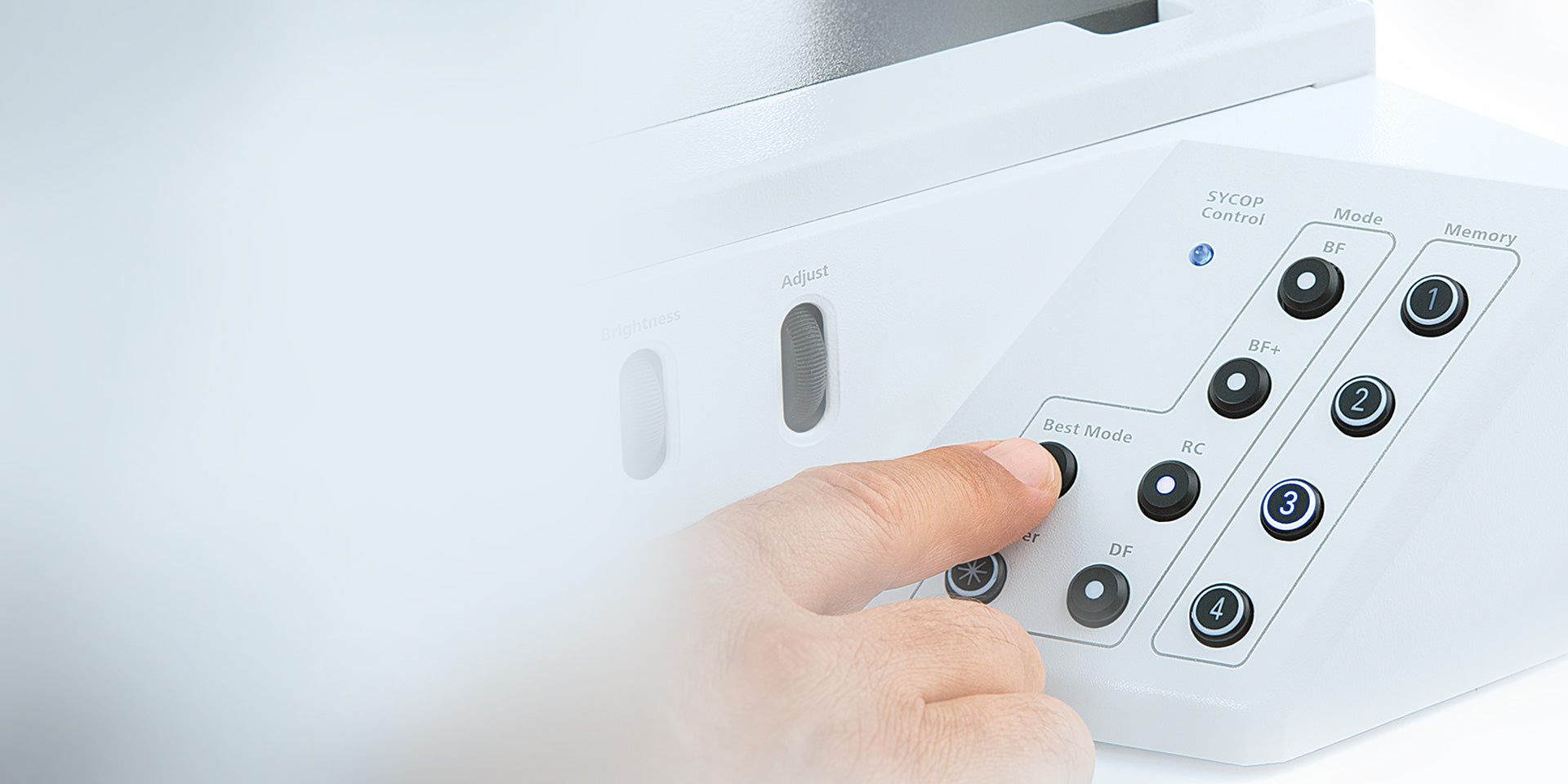

✓ Intelligent transmitted light over the whole zoom range

VIEW VARIANTS

Twice as Sharp Images with eZoom

The zoom body is the core of stereo and zoom microscopes. When zooming, lenses have to be positioned precisely. Until now, a metal component milled with great care would determine the exactness of this movement and the optical quality of your microscope.

eZoom replaces the mechanical curve with an electronic one. Stepping motors position the moveable lenses precisely and take the tolerances of the individual lenses into account. Each zoom body describes its own zoom curve and captures visibly more details. eZoom follows the base line for image sharpness over the magnification range with a doubled precision, compared to a mechanical zoom body.

Green: depth of field curve, within these parameters, images are in focus Red: typical defocus curve of a single zoom channel with mechanical zoom curve Blue: typical defocus curve of a single zoom channel with electronic zoom curve

Application Examples

Fluorescence: Whole mouse embryo

Brightfield for transparent, high-contrast and dyed specimens and to display contours and profiles: Daisy, PlanApo S 1.5x objective, Magnification: 150×

Two-color fluorescence image of drosophila embryo

Human cells identified to be isolated and transported to the PCR tube
