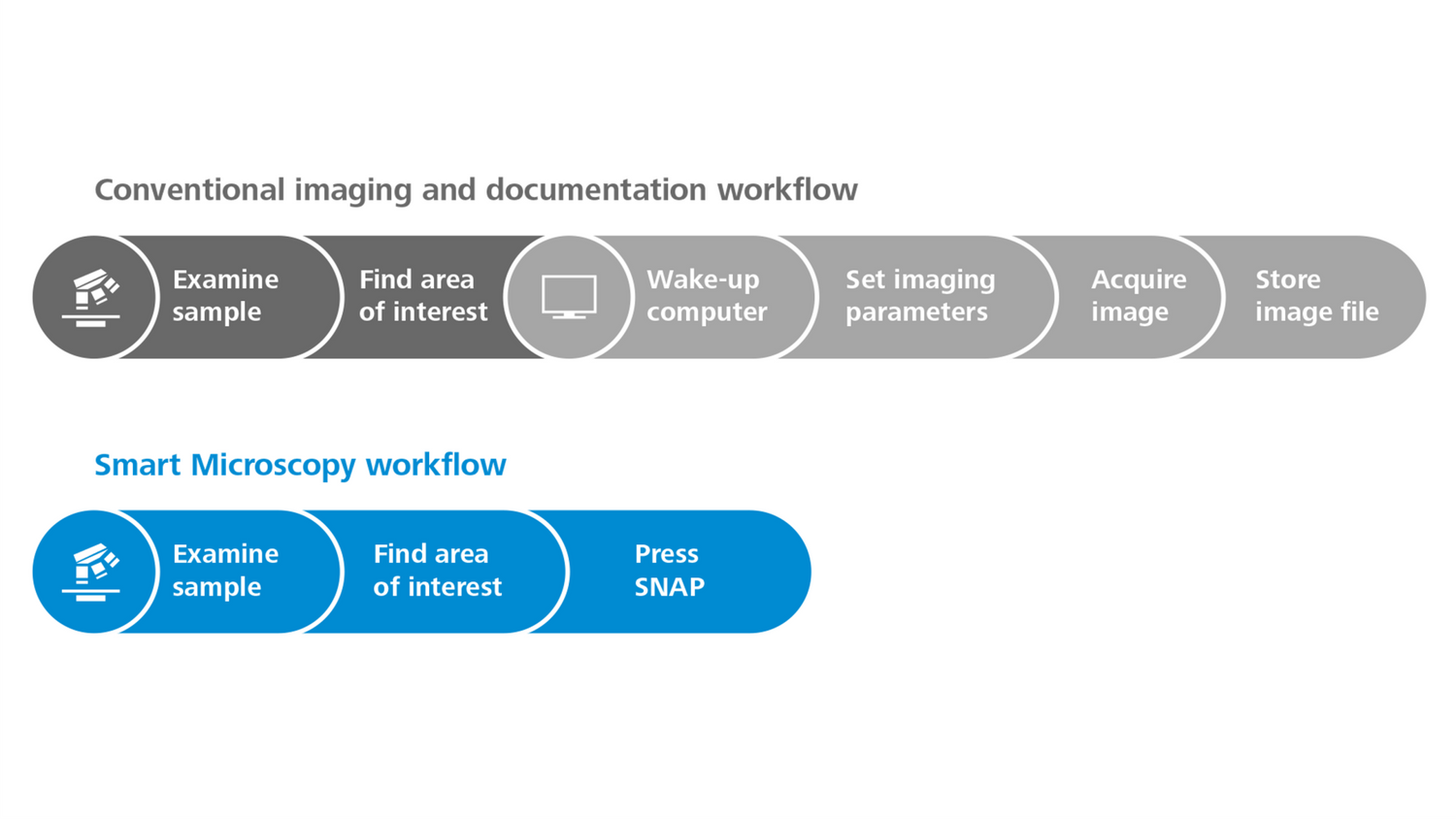

Digital documentation has never been easier. ZEISS Axiolab 5 is the right choice if your routine materialography applications place high demands on ergonomic operation and efficient digital documentation. Since the Smart Microscopy concept does not require additional imaging software or even a computer, Axiolab 5 is also the first choice from an economic point of view.
✓ Digital documentation made easy

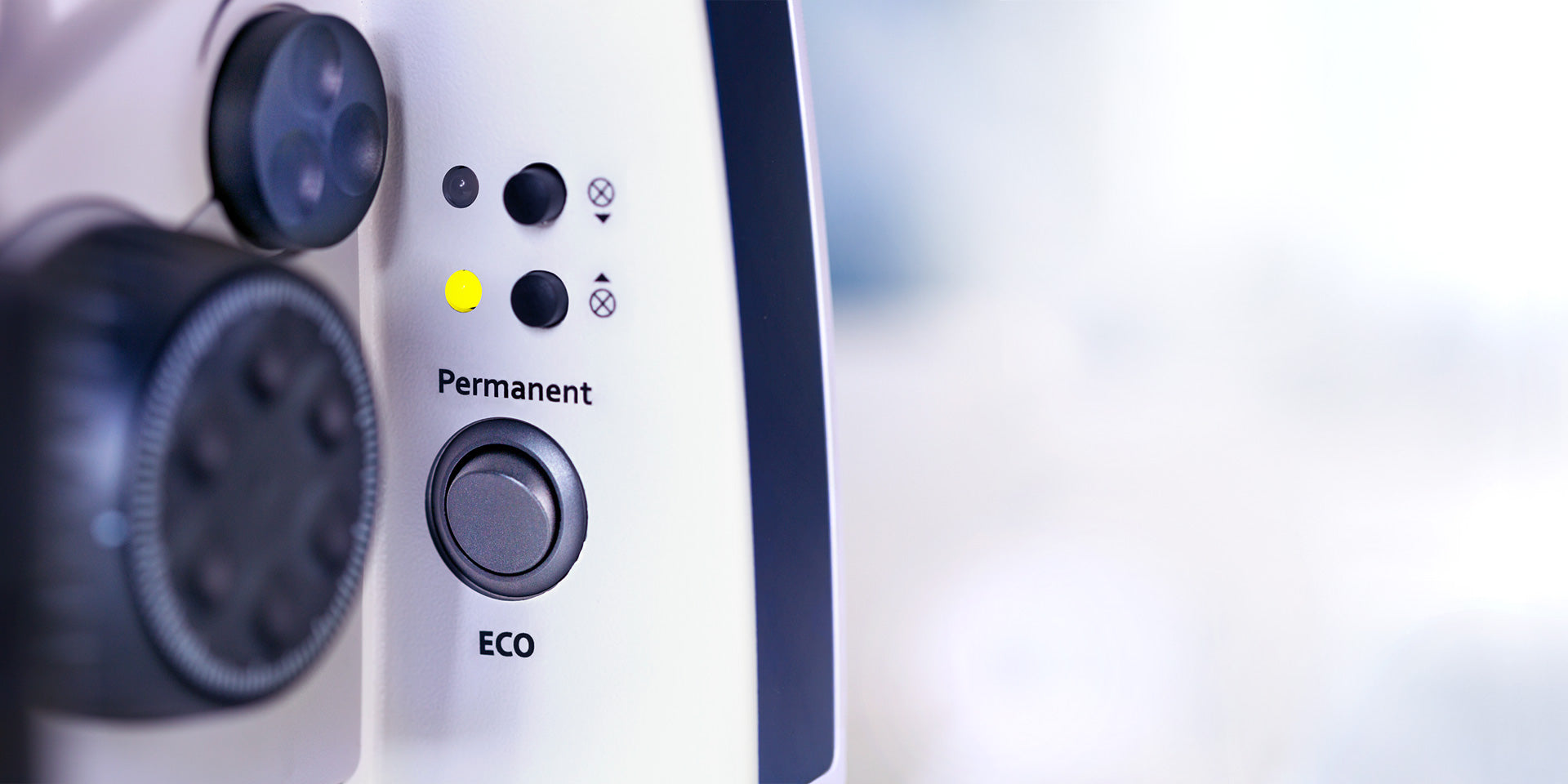

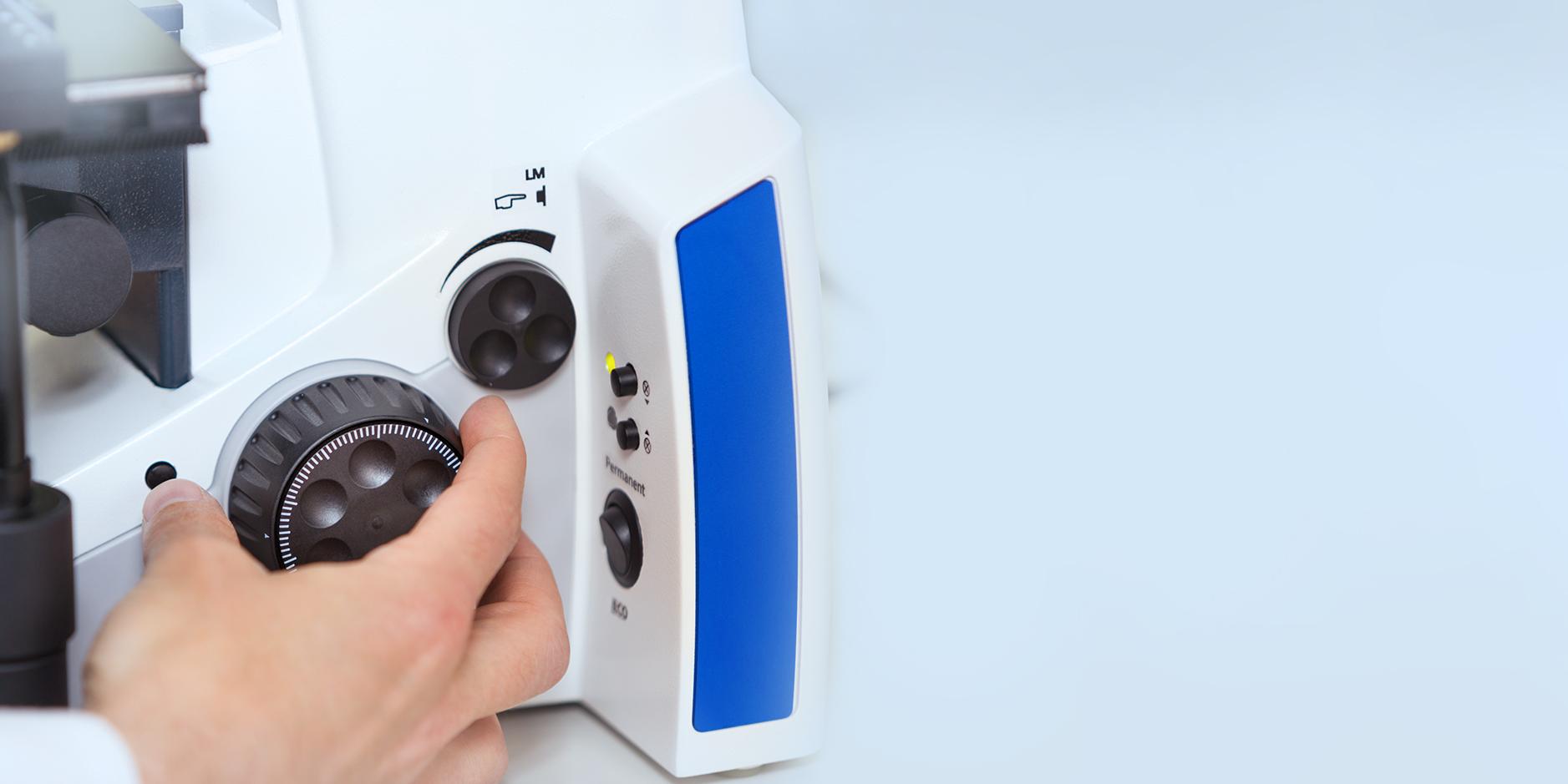

✓ Clever ergonomics for relaxed lab work
✓ More economic and reliable
Typical tasks and applications
• Determine grain sizes, structure, distribution and phases.
• Quickly carry out on-site analysis.
• Study mode(s) of material failure: fatigue, corrosion, creep deformation, stress cracks or fractures.
Cast iron, reflected light, bright field, EC EPIPLAN 20×/0.4
Cast iron, reflected light, dark field, EC EPIPLAN 20×/0.4
Color-etched steel, reflected light, bright field, EC EPIPLAN 20×/0.4
Color-etched steel, reflected light, dark field, EC EPIPLAN 20×/0.4
Typical tasks and applications:
• High-throughput material inspection and documentation
• Incoming goods inspection
• High-quality imaging for publications
• Failure analysis
Process quality monitoring

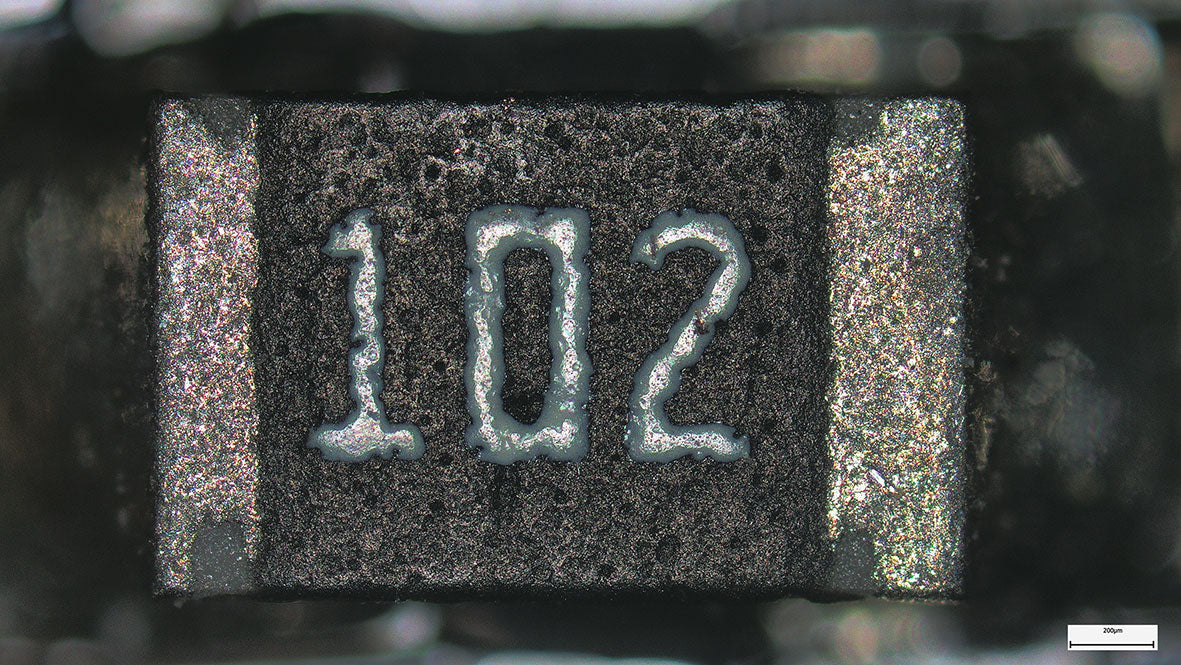

Electronic device SMD resistor: Document the quality of printing and contact surfaces. EC EPIPLAN 5×/0.13

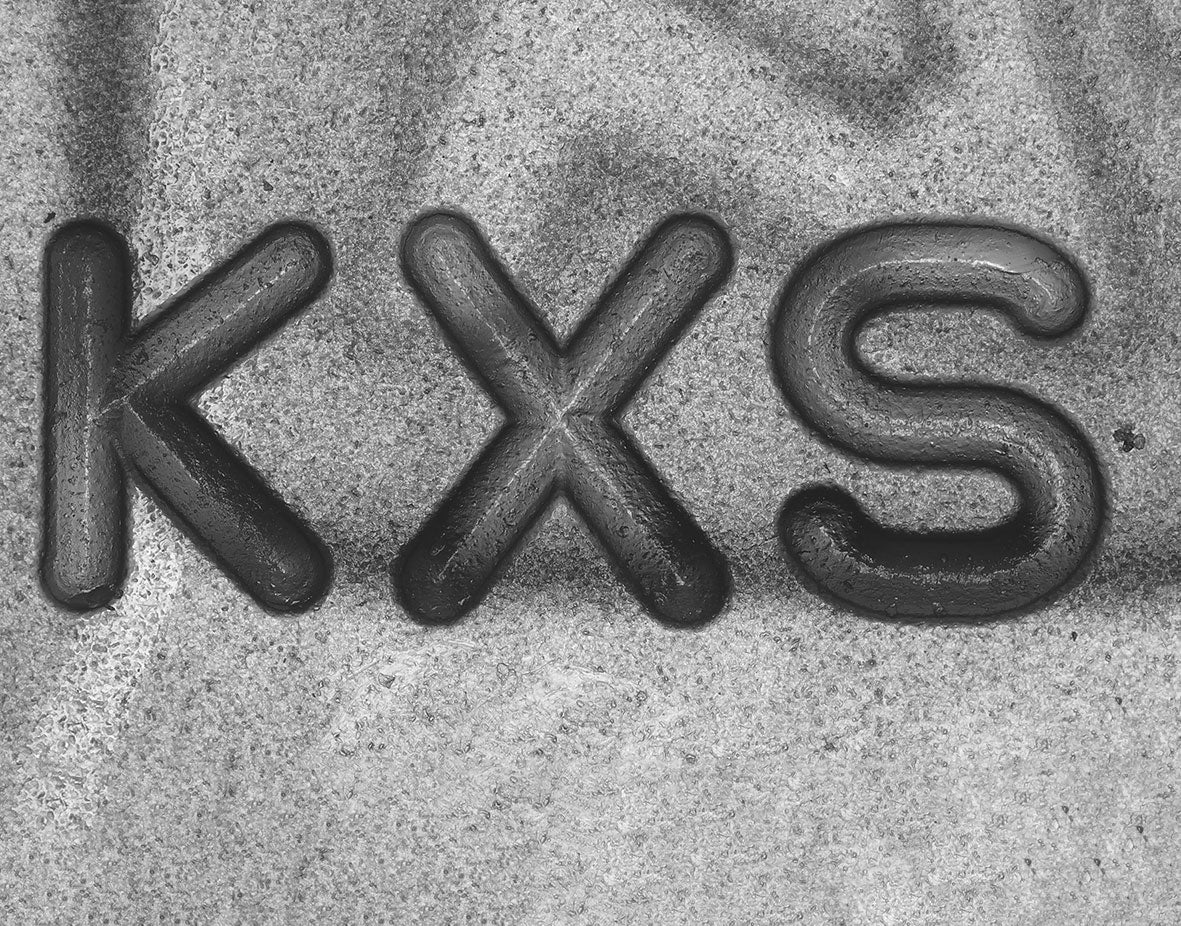

Injection-molded identification letter at transparent plastic part, EC EPIPLAN 5×/0.13

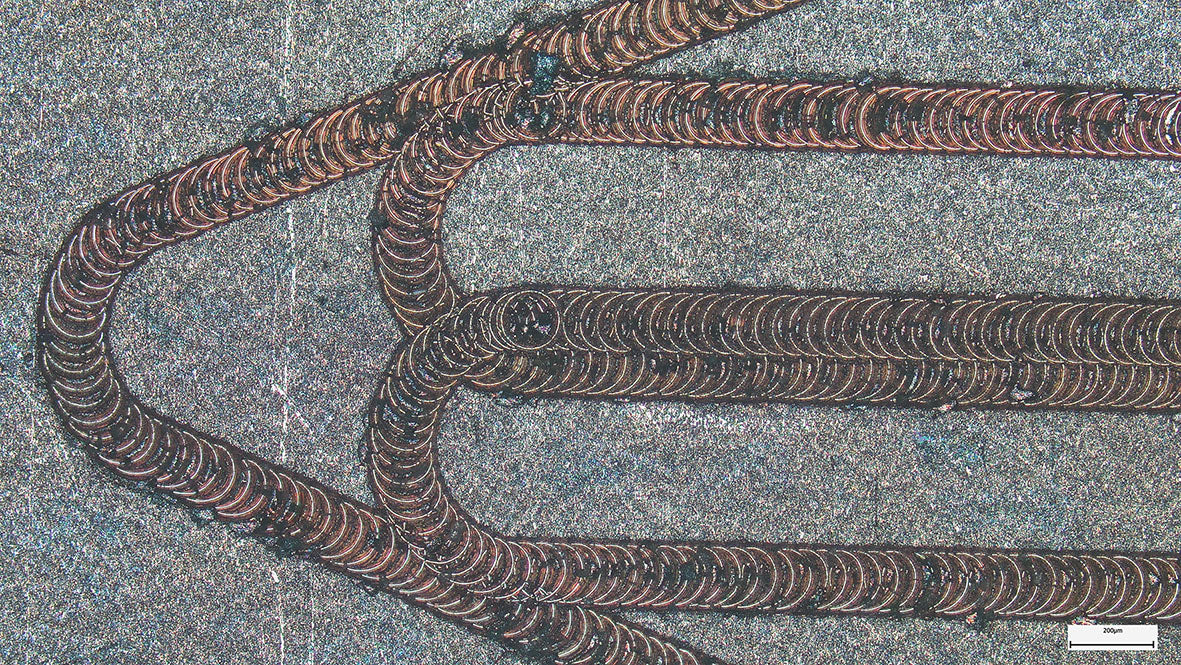

Milling marks for engraving purposes, EC EPIPLAN 5×/0.13

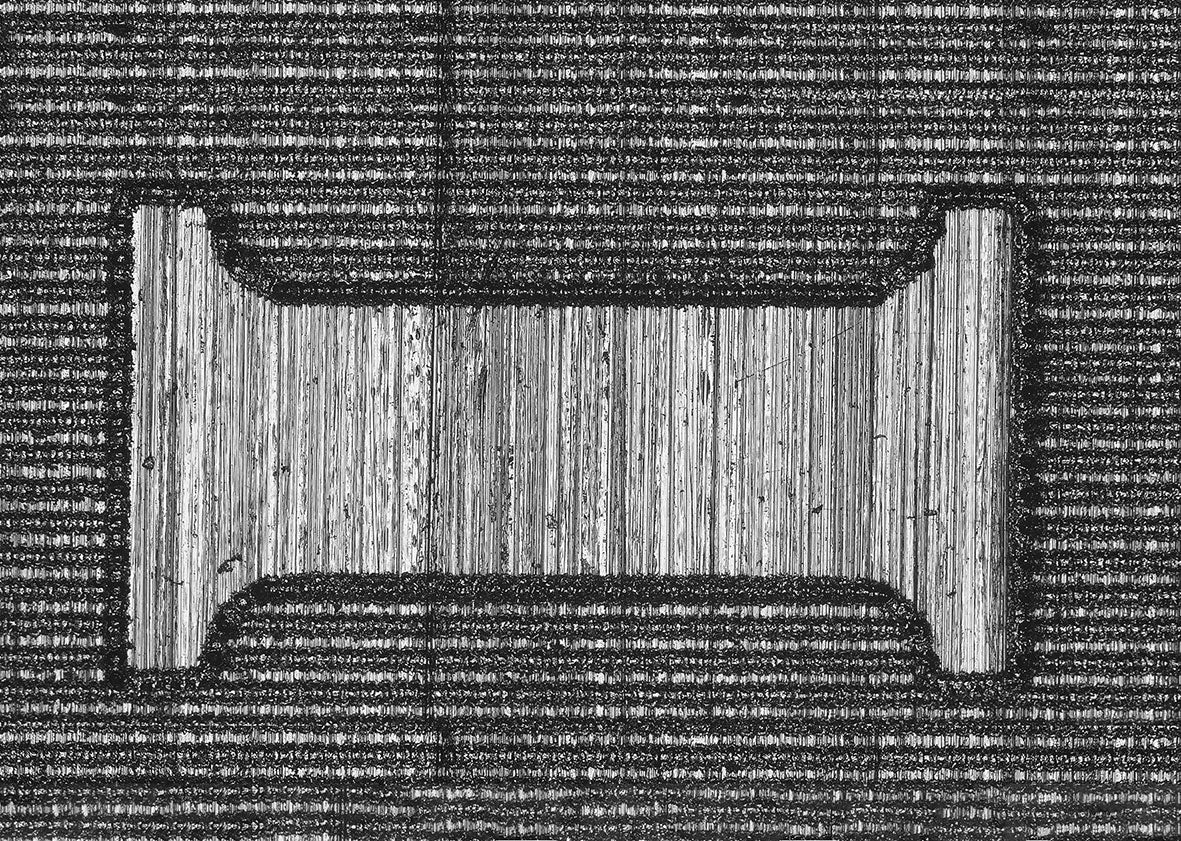

Laser-structured metal part, EC EPIPLAN 5×/0.13

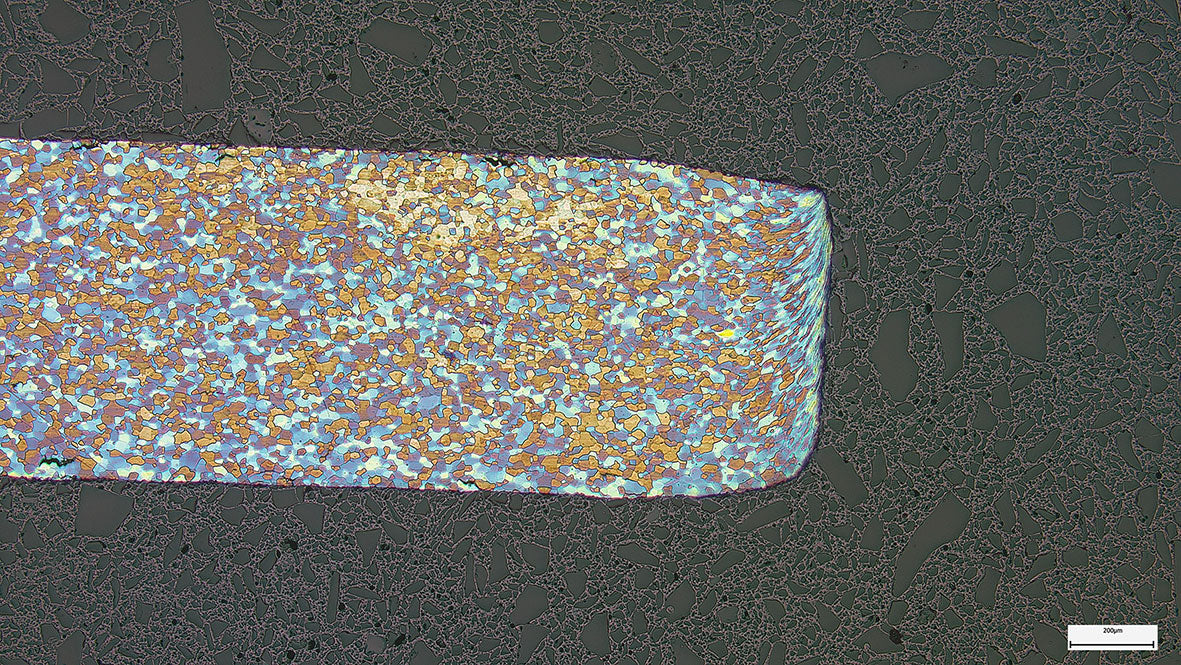

Color-edged steel embedded in resin. Check the quality of the mounting. EC EPIPLAN 10×/0.25
Cast iron with spherulitic graphite. Areas with corrosion and broken out graphite spheres indicate refurbishing of samples.
Typical tasks and applications
• Examine thin sections of rock and minerals to determine their composition.
• Classify anisotropic materials like calcite, olivine, titanite, or zircon.
• Get answers to questions relating to refractive indices, cleavages, double refraction, extinction angles, optical path differences, and the number and angle of optical axes.
Biotite inside granite, transmitted light, bright field, EC Plan-NEOFLUAR 10×/0.3 Pol
Biotite inside granite, transmitted light, crossed polarizers with lambda plate, EC Plan-NEOFLUAR 10×/0.3 Pol
Fluorite, transmitted light, bright field, EC Plan-Neofluar 5×/0.16 Pol

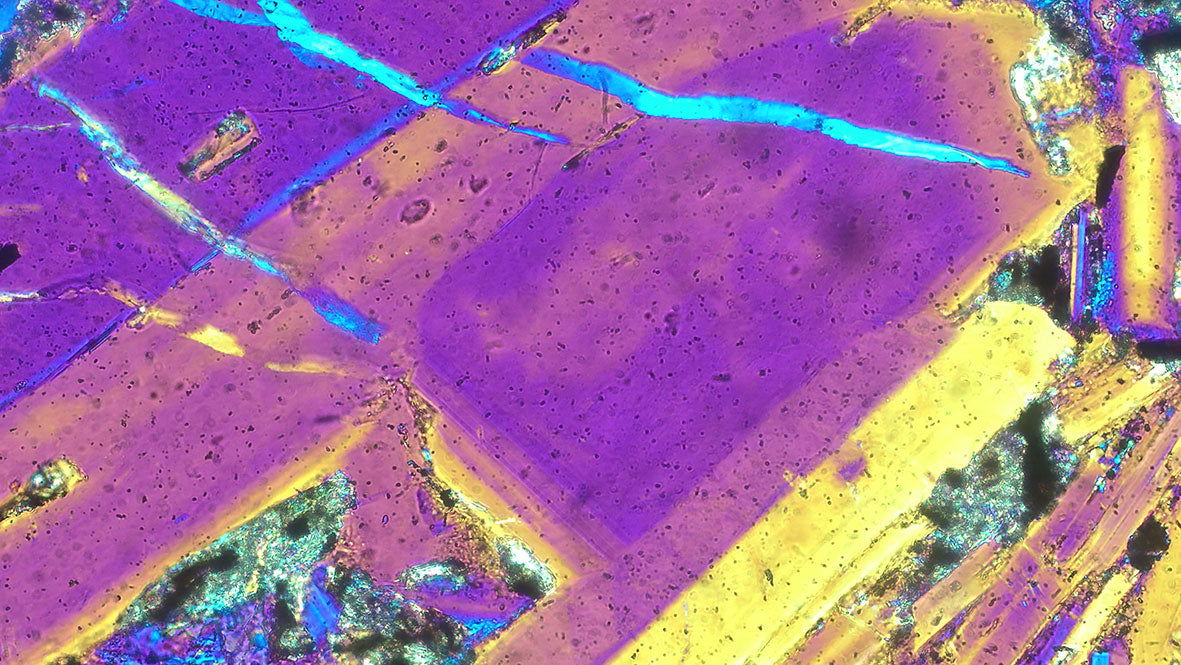

Fluorite, transmitted light, crossed polarizers with lambda plate, EC Plan-Neofluar 5×/0.16 Pol
Choose Your Configuration

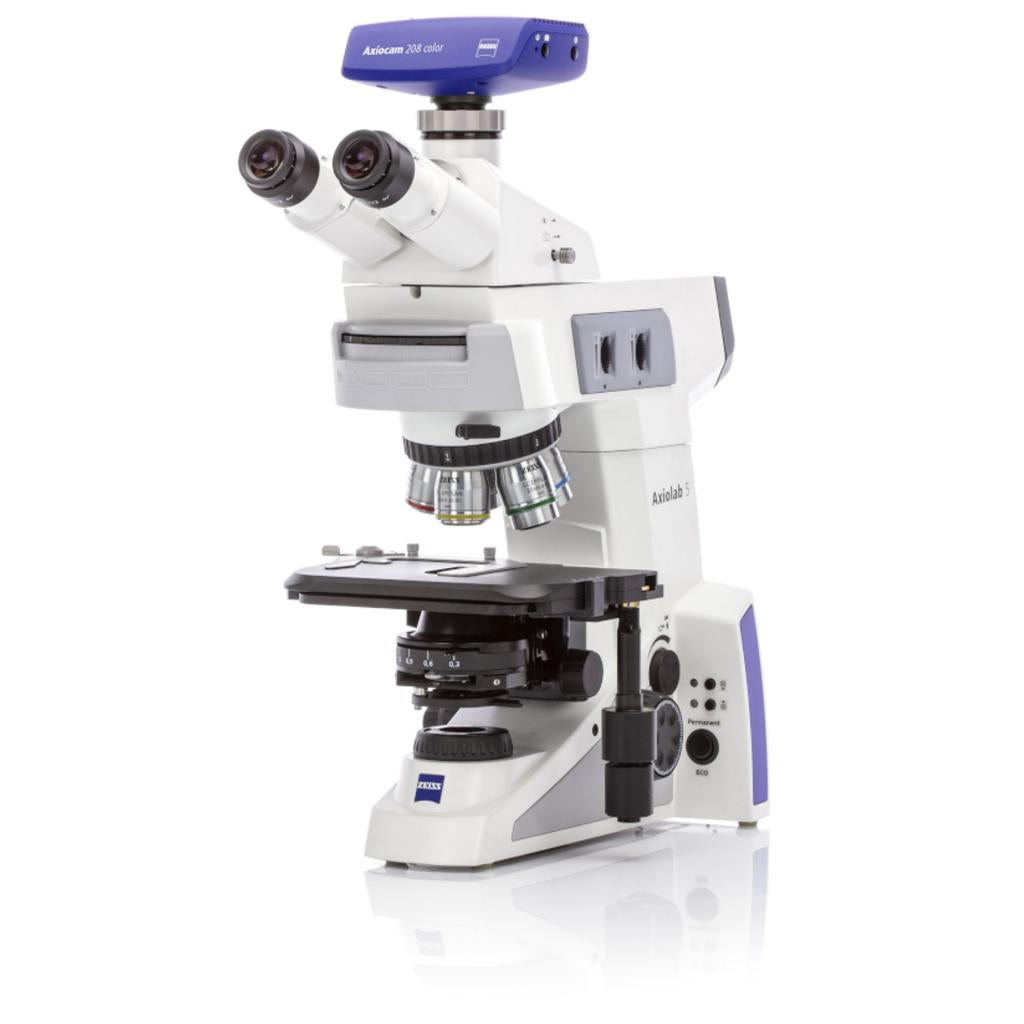

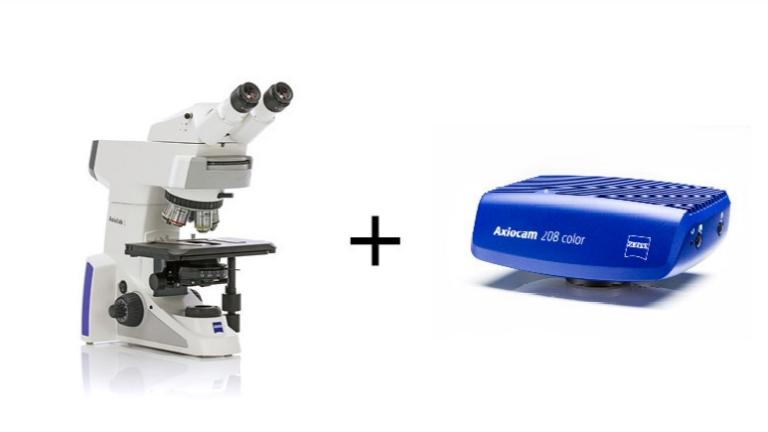

In combination with ZEISS Axiocam 208 color, ZEISS Axiolab 5 operates independently of a computer system.

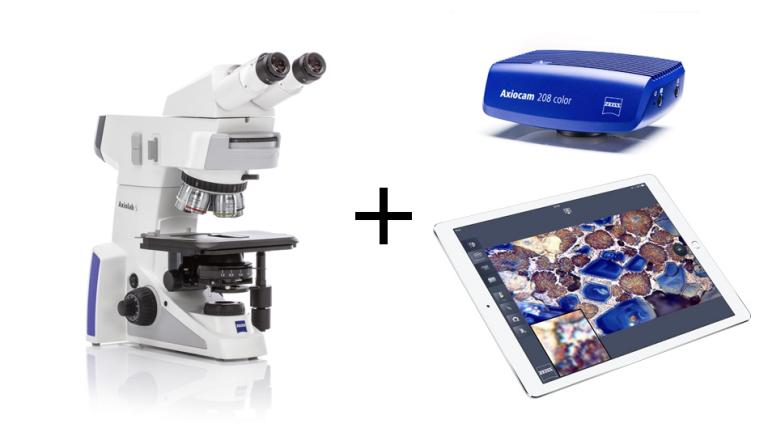

Operating ZEISS Axiolab 5 with ZEISS Labscope imaging app is ideal for connected microscopy, especially in education.

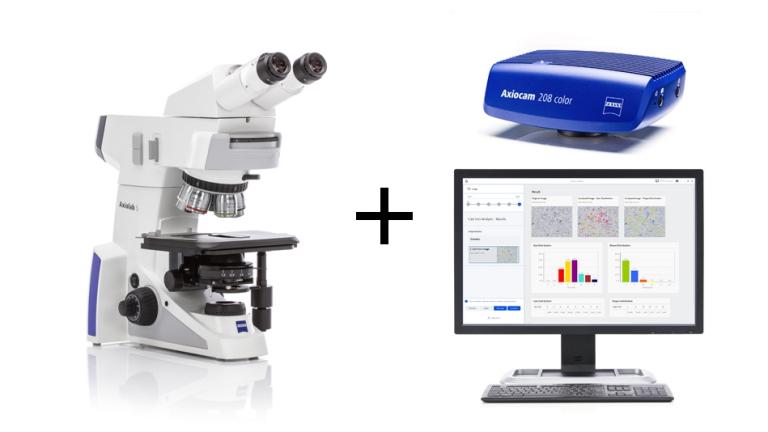

Use the ZEISS imaging software ZEN core to perform advanced imaging and analysis tasks with ZEISS Axiolab 5.
In combination with ZEISS Axiocam 208 color, ZEISS Axiolab 5 operates independently of a computer system.
Operating ZEISS Axiolab 5 with ZEISS Labscope imaging app is ideal for connected microscopy, especially in education.
Use the ZEISS imaging software ZEN core to perform advanced imaging and analysis tasks with ZEISS Axiolab 5.
