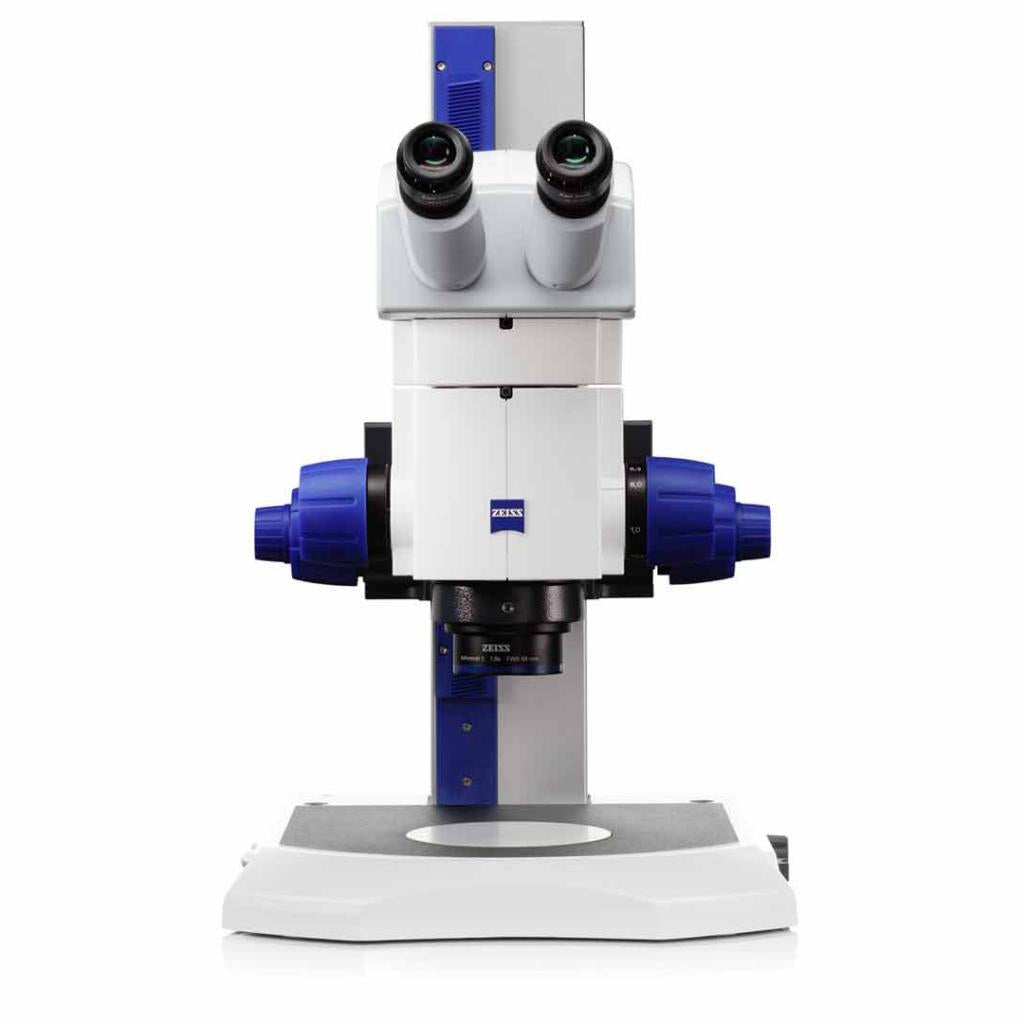

Prepare and manipulate your samples - especially in developmental biology and quality assurance - thanks to the three-dimensional image perception. Acquire crisp and brilliant images throughout the whole 8:1 zoom range. The selectable click-stops for discrete magnification steps allow you to calibrate pixel sizes in the imaging software ZEN.
✓ Prepare and manipulate your samples.
✓ Profit from the 8:1 zoom range.
✓ Get a three-dimensional image perception.
Developmental Biology
Quality Assurance
Particularly Suitable for Flat, Specular Specimens
Mouth parts of the common housefly – Lateral darkfield. Transmitted light with VisiLED HCT contrast stage.
Mouth parts of the common housefly – Brightfield. Transmitted light with VisiLED HCT contrast stage.

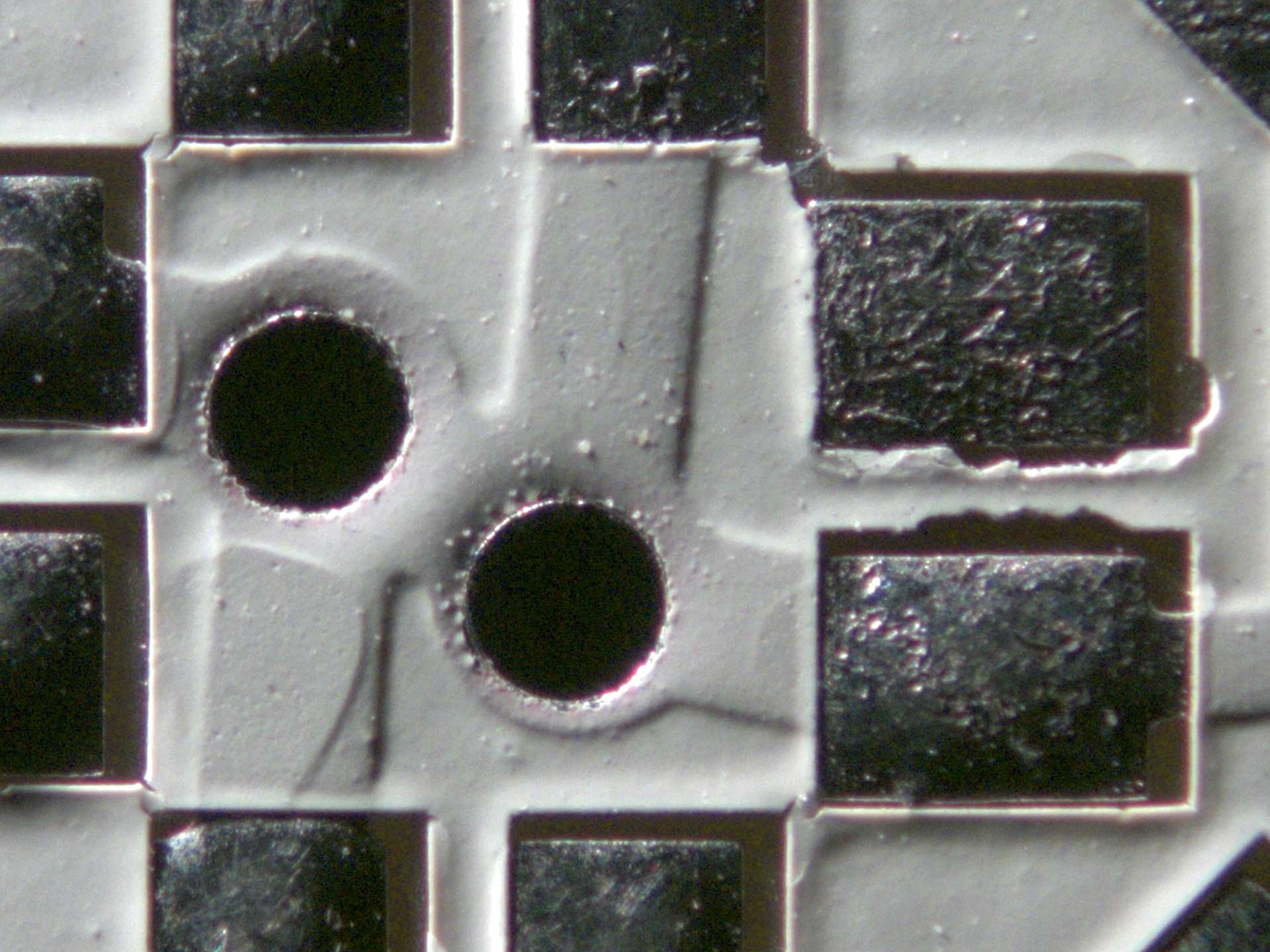

SMD-Board with white solder resist. Reflected light with different light guides. Linear slit light for lateral grazing light.
Product Info | White Papers

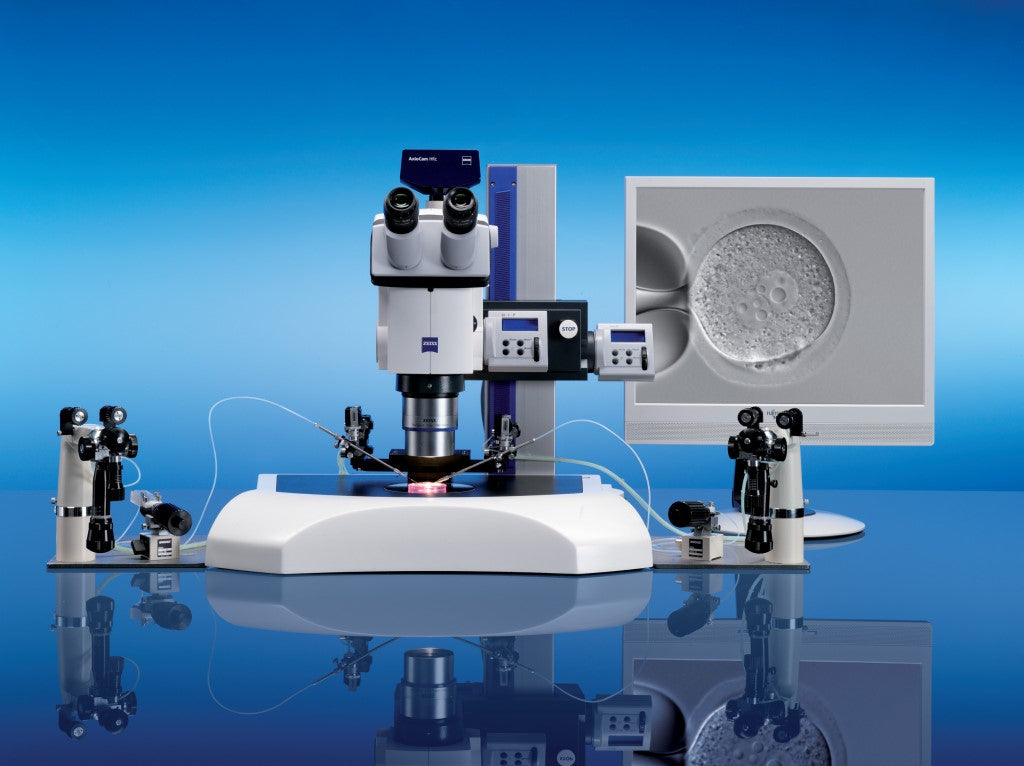

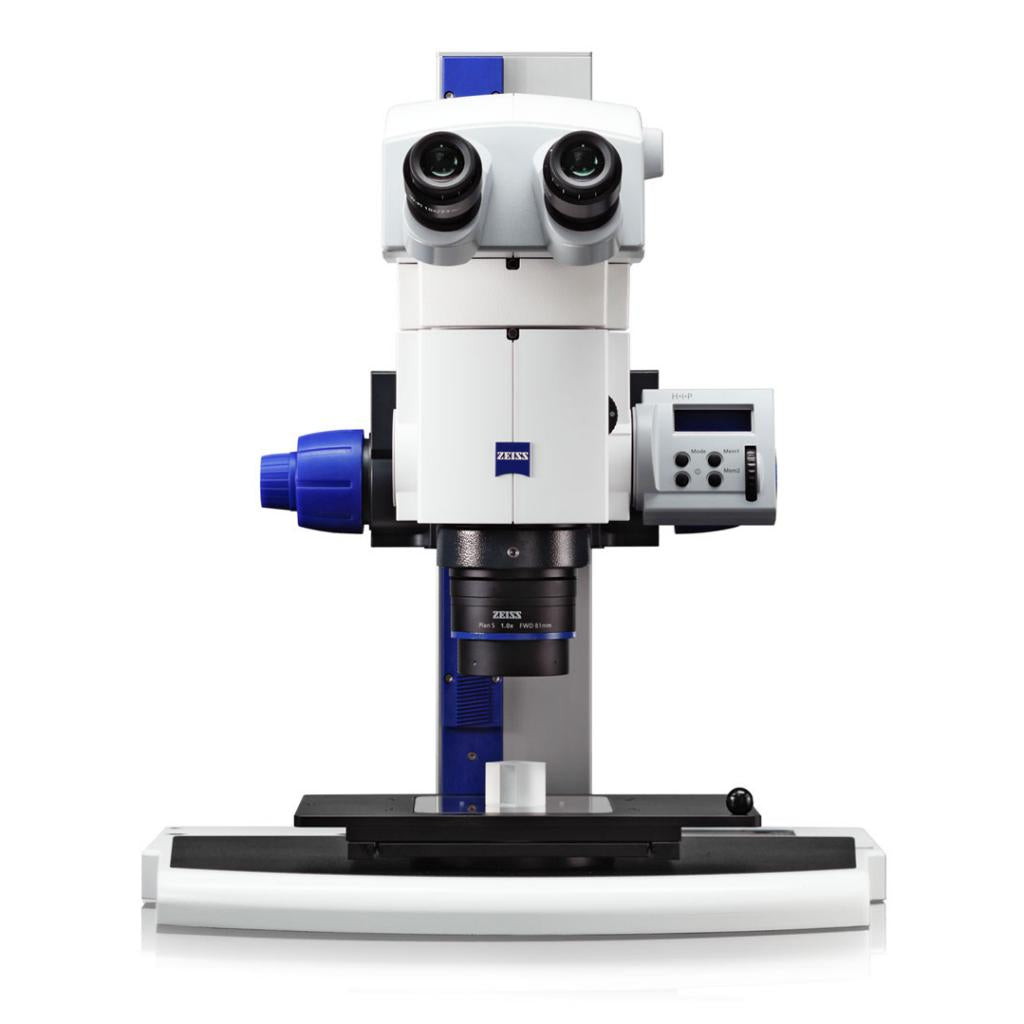

SteREO Discovery.V12 enhances resolution and contrast in biology and quality assurance. Observe your Drosophila or zebrafish embryos, stents, or circuit boards with an enhanced three-dimensional impression – and get reproducible results over the whole 12:1 motorized zoom range. Capture images that are crisp, rich in contrast and have excellent color fidelity.
✓ Motorized components for reliable results.
✓ Excellent depth perception even at high magnification.

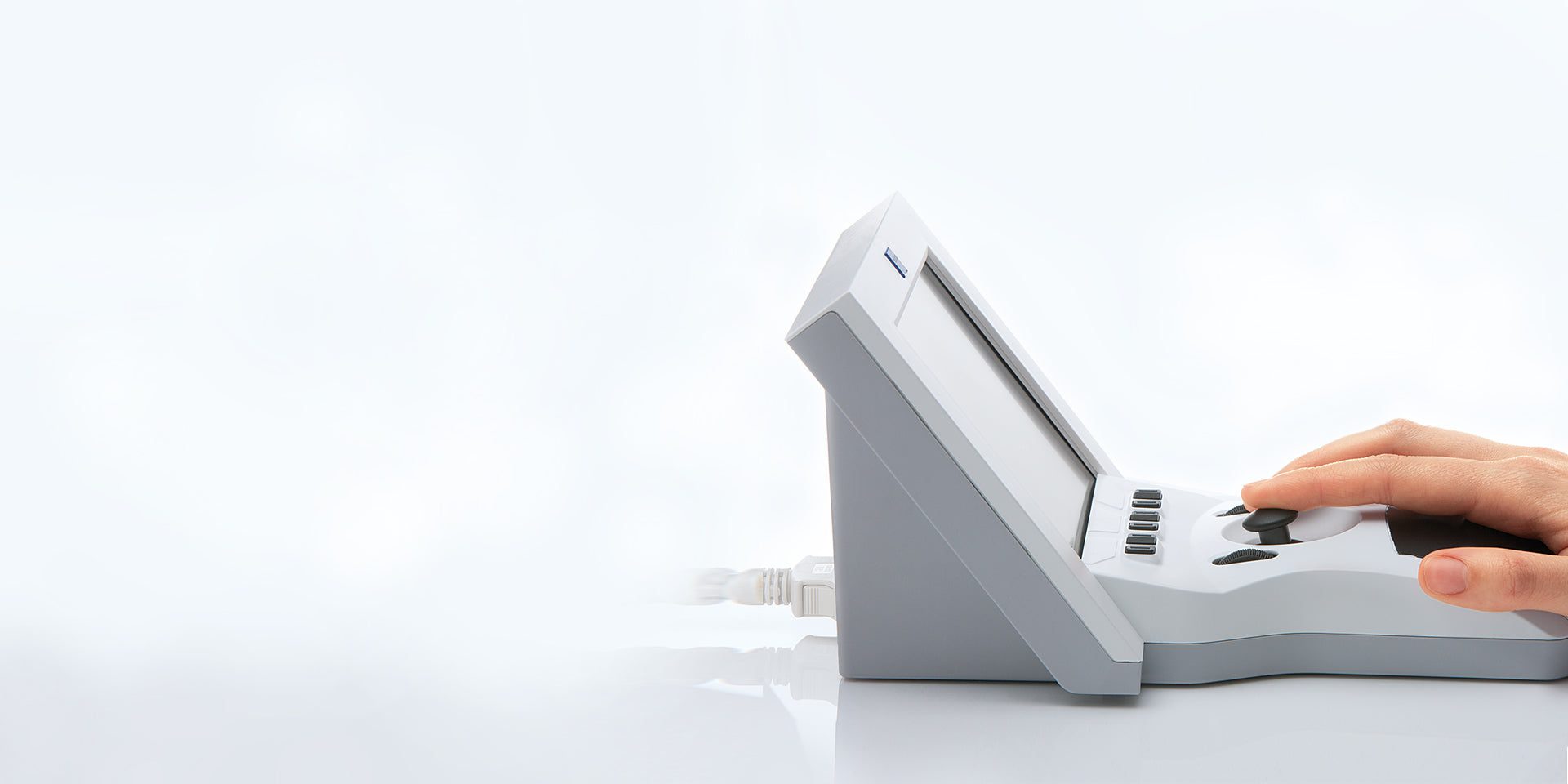

✓ Ergonomic operation with the SYCOP touch panel.

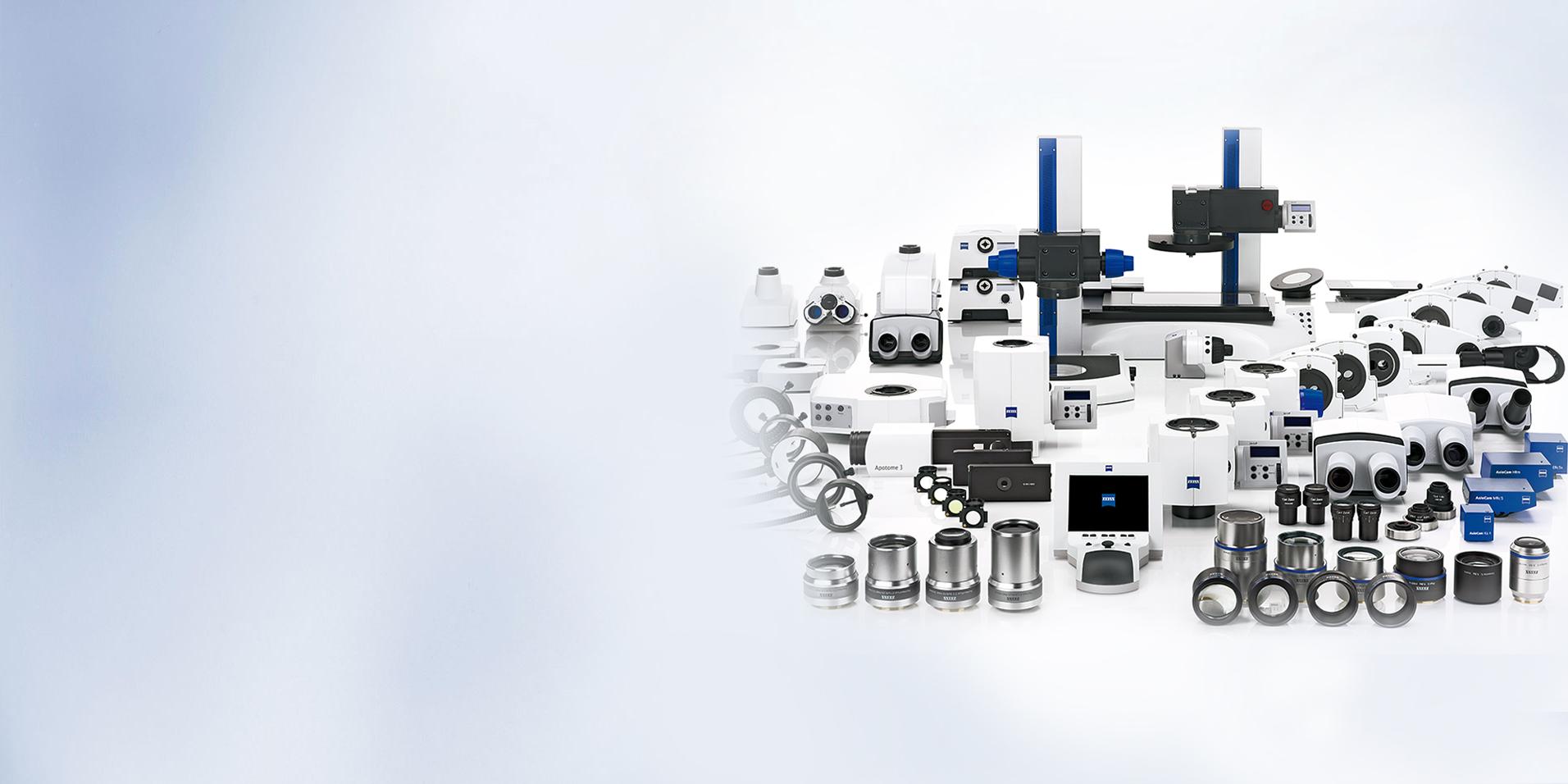

✓ Integrated into the modular system of SteREO microscopesl.
The zoom body is the core of stereo and zoom microscopes. When zooming, lenses have to be positioned precisely. eZoom replaces the mechanical curve with an electronic one. Stepping motors position the moveable lenses precisely and take the tolerances of the individual lenses into account. Capture visibly more details with a doubled precision, compared to a mechanical zoom body.
Caption

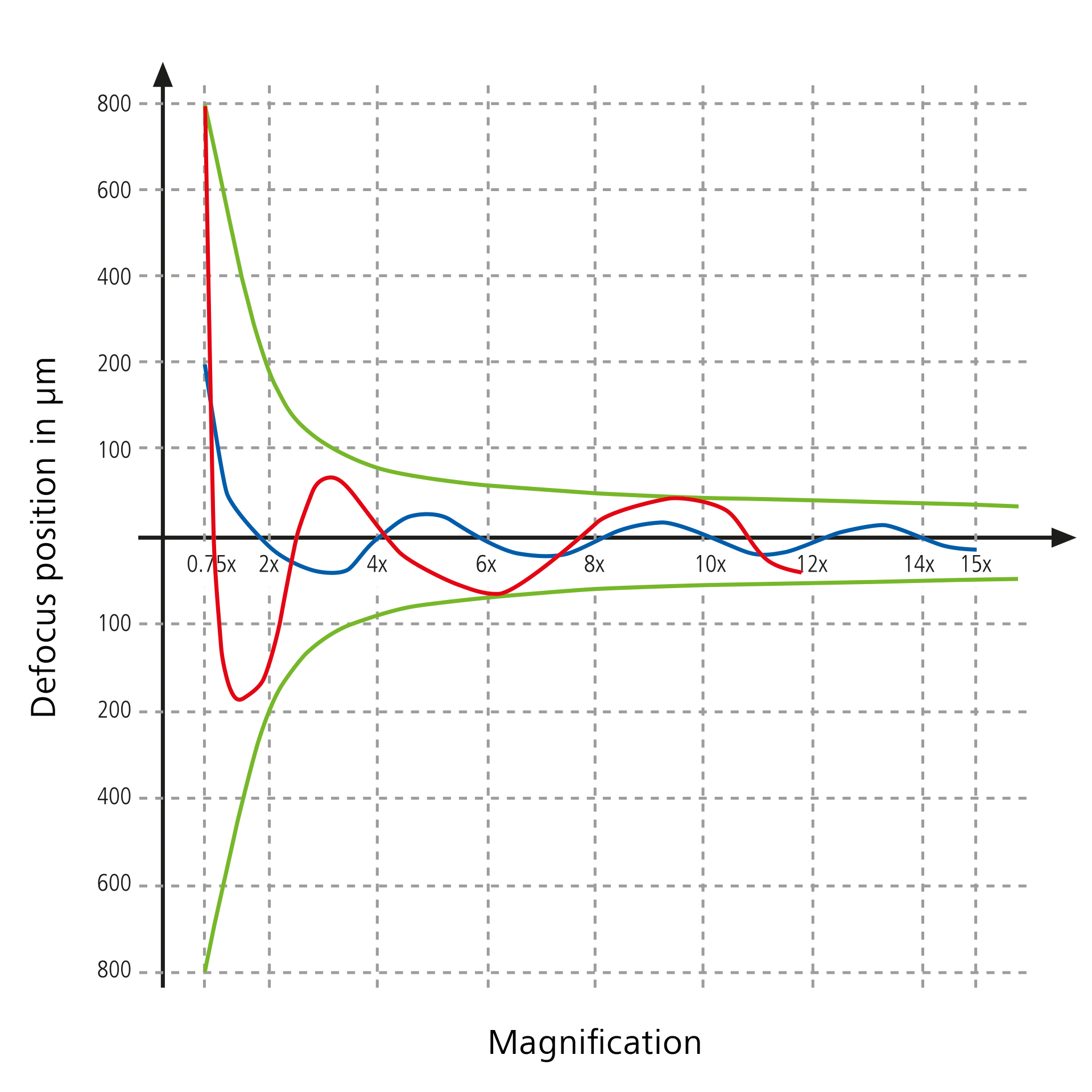

Green: depth of field curve, within these parameters, images are in focus Red: typical defocus curve of a single zoom channel with mechanical zoom curve Blue: typical defocus curve of a single zoom channel with electronic zoom curve.
Embryonic stage of a squid, darkfield
Diatoms, transmitted light brightfield
Ofan embryo, brightfield, oblique illumination ("negative“ relief contrast)

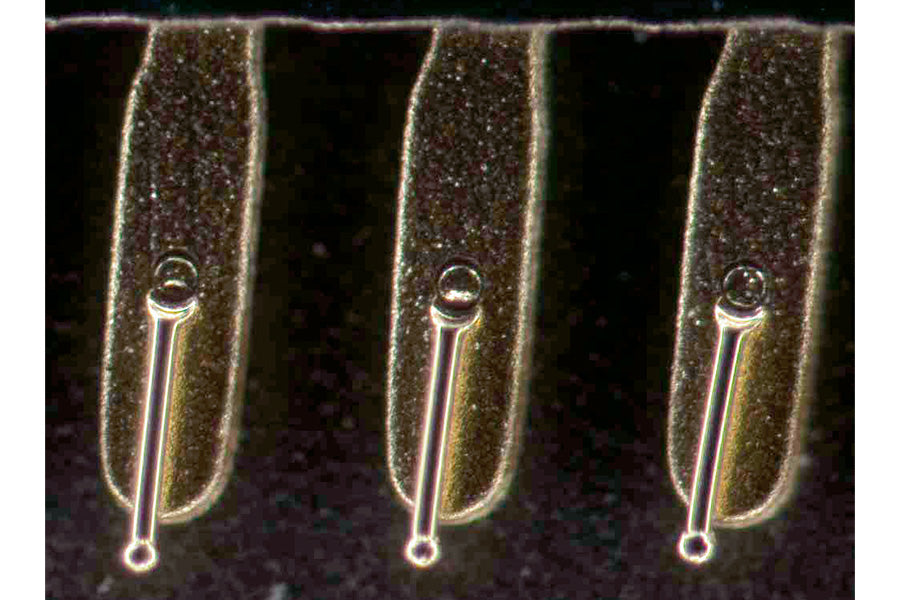

Semiconductor element, reflected light darkfield

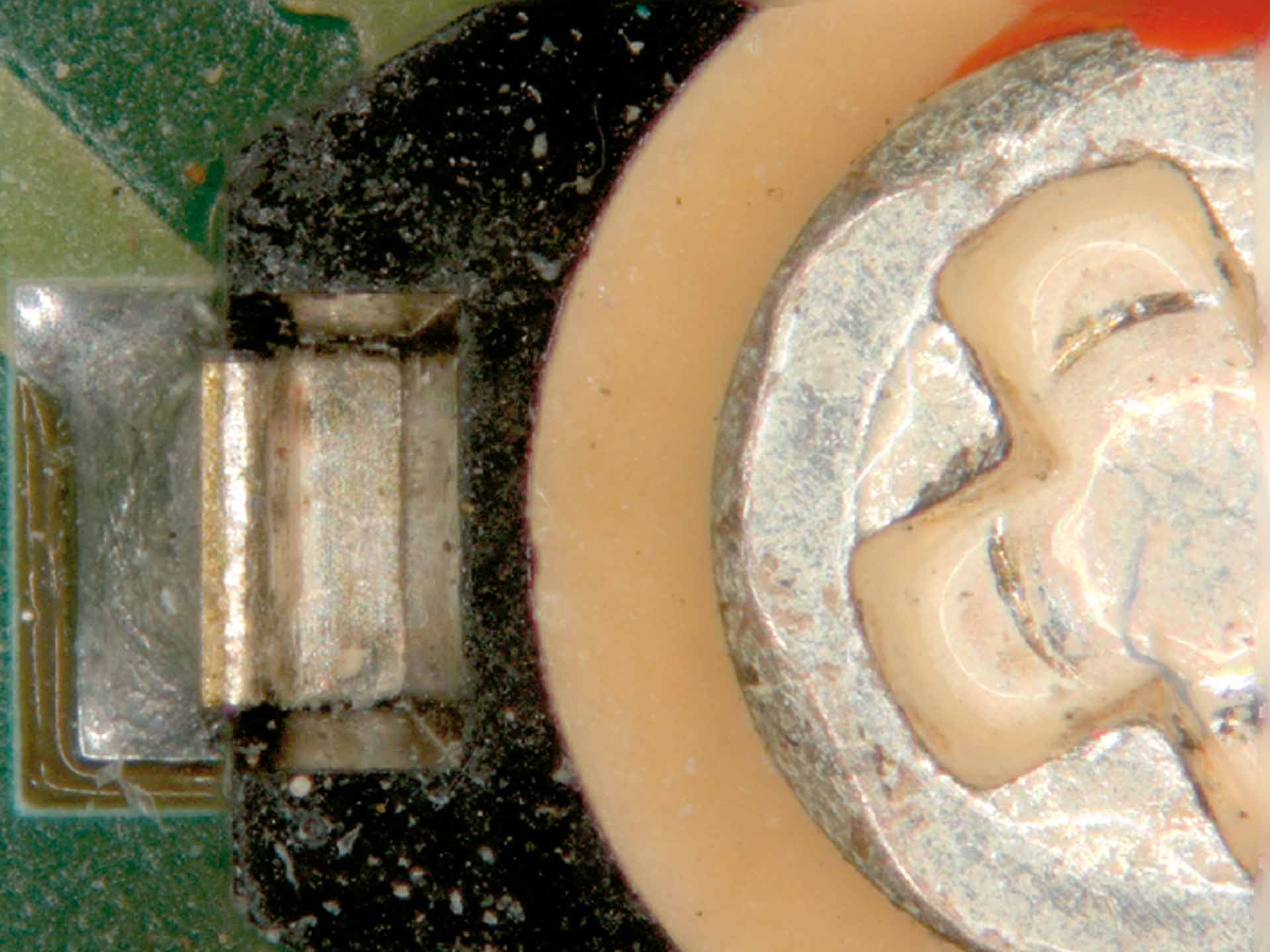

Electronic component, reflected light brightfield

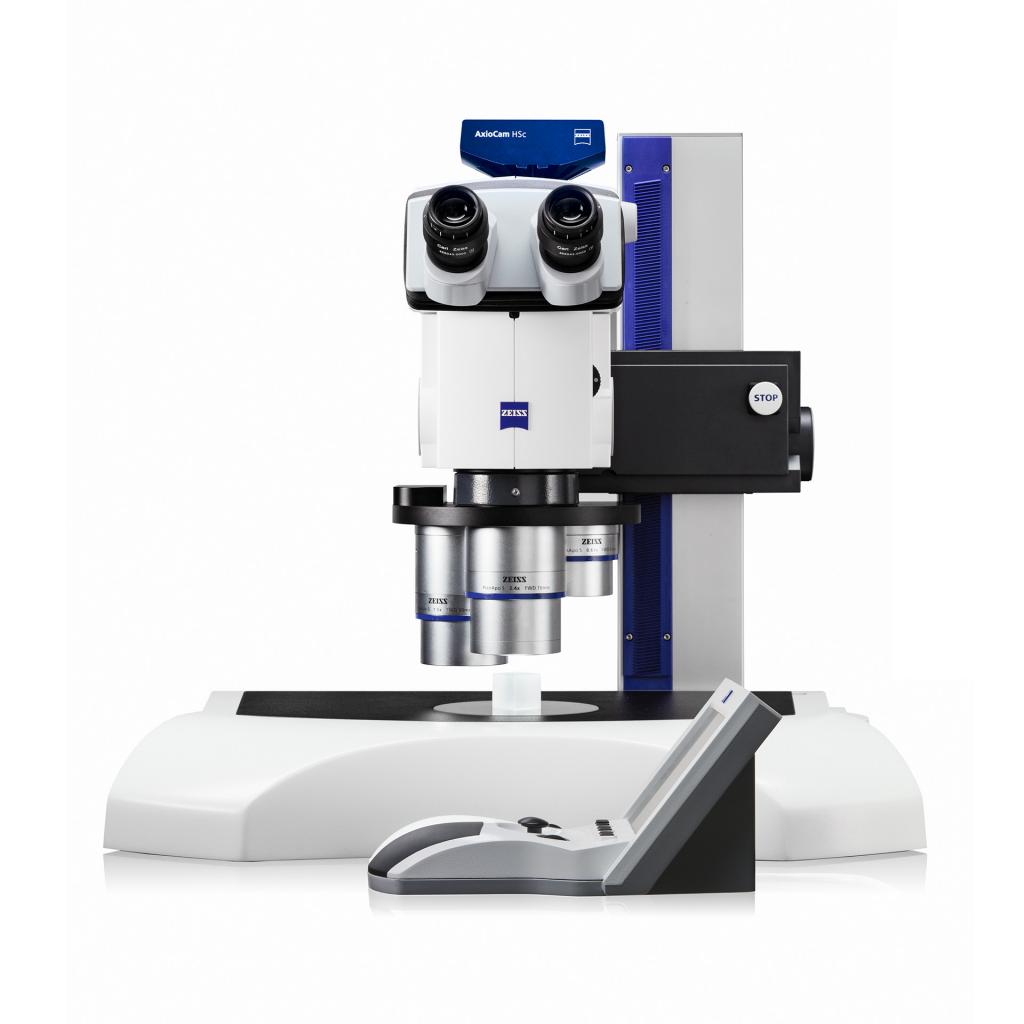

Enjoy the flexibility of a 20:1 zoom range to go from largest overview into the smallest details. Get brilliant three-dimensional images with exceptional depth perception. Choose your optimal magnification or move to user-defined zoom positions with eZoom. Reproduce zoom positions with an accuracy of more than 99 percent! Use the SYCOP touch panel to control magnification, focus, contrast, and brightness with ease.
✓ Excellent depth perception.
✓ Up to 345x total magnification.
✓ Up to 1000 LP/mm maximum resolution.
✓ Ergonomic operation with the SYCOP touch panel.
✓ Integrated into the modular system of SteREO microscopes.
The zoom body is the core of stereo and zoom microscopes. When zooming, lenses have to be positioned precisely. eZoom replaces the mechanical curve with an electronic one. Stepping motors position the moveable lenses precisely and take the tolerances of the individual lenses into account. Capture visibly more details with a doubled precision, compared to a mechanical zoom body.
Caption
Green: depth of field curve, within these parameters, images are in focus Red: typical defocus curve of a single zoom channel with mechanical zoom curve Blue: typical defocus curve of a single zoom channel with electronic zoom curve.

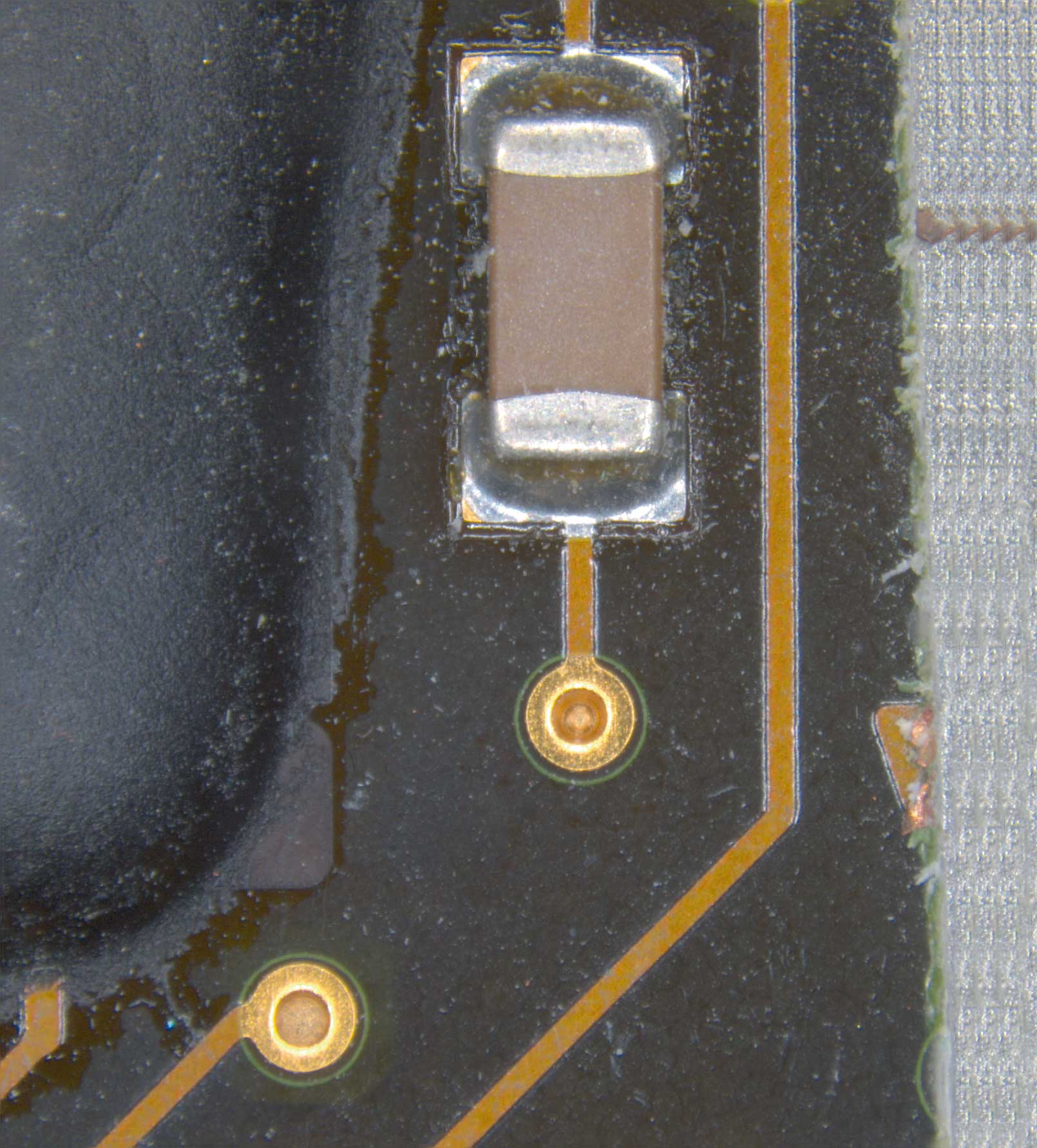

PCB component, reflected light darkfield, magnification: 7.5x

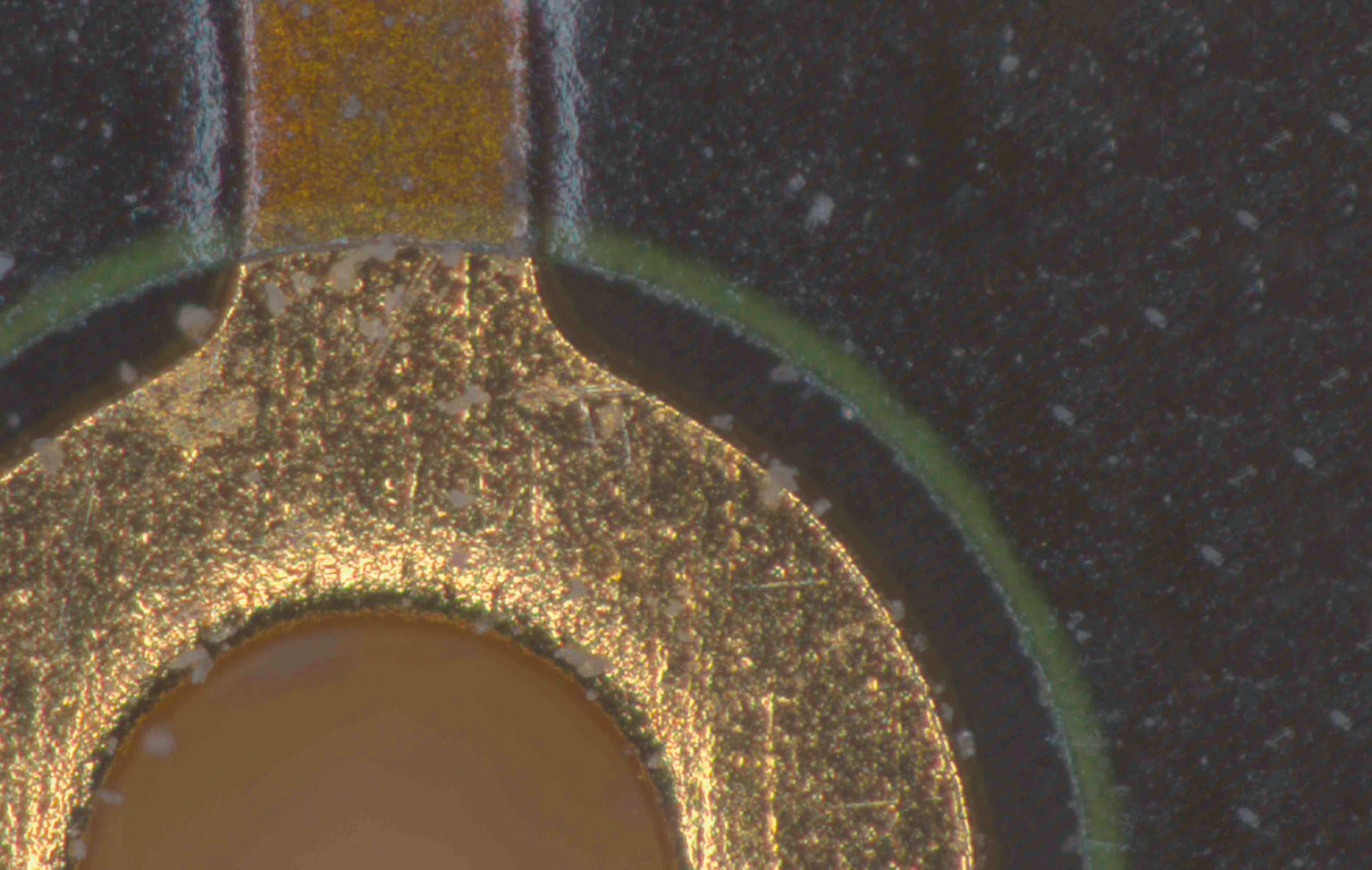

PCB component, reflected light darkfield, magnification: 150x (total magnification through the eyepieces)
Daisy (Bellis perennis), transmitted light brightfield, magnification: 150x (visual magnification with 10x eyepieces)
Diatom, transmitted light darkfield
Mouse embryo, stained, transmitted light brightfield, magnification: 94x
